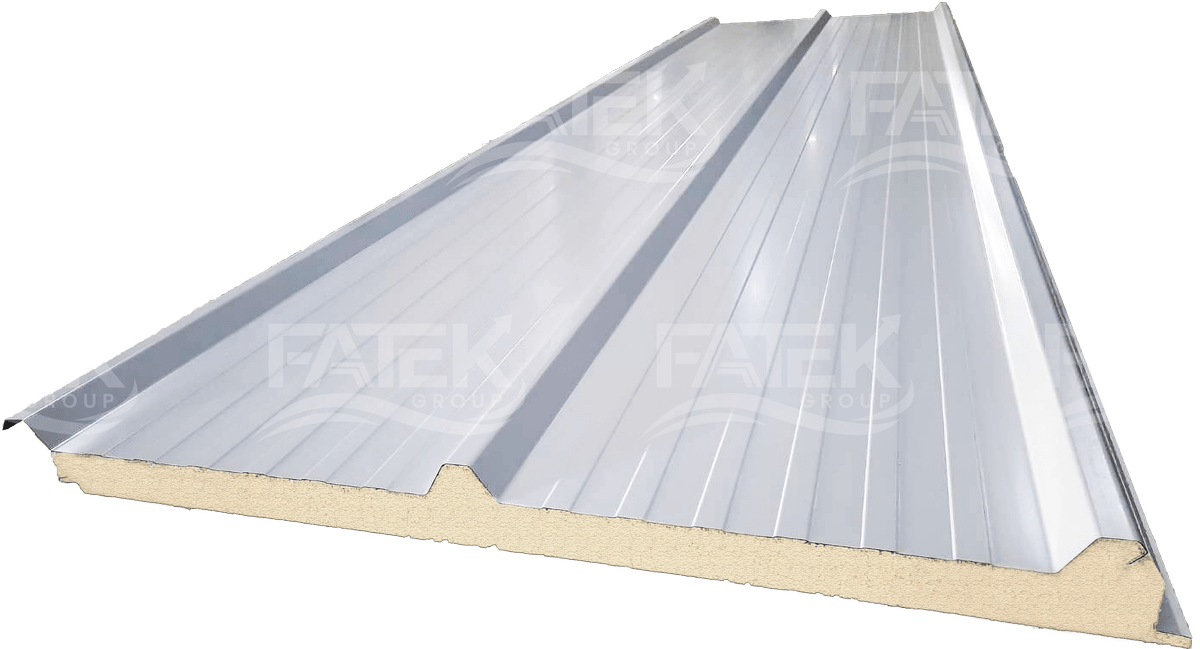

Off White color pir standard roof
Metal sheet roof with PIR insulation

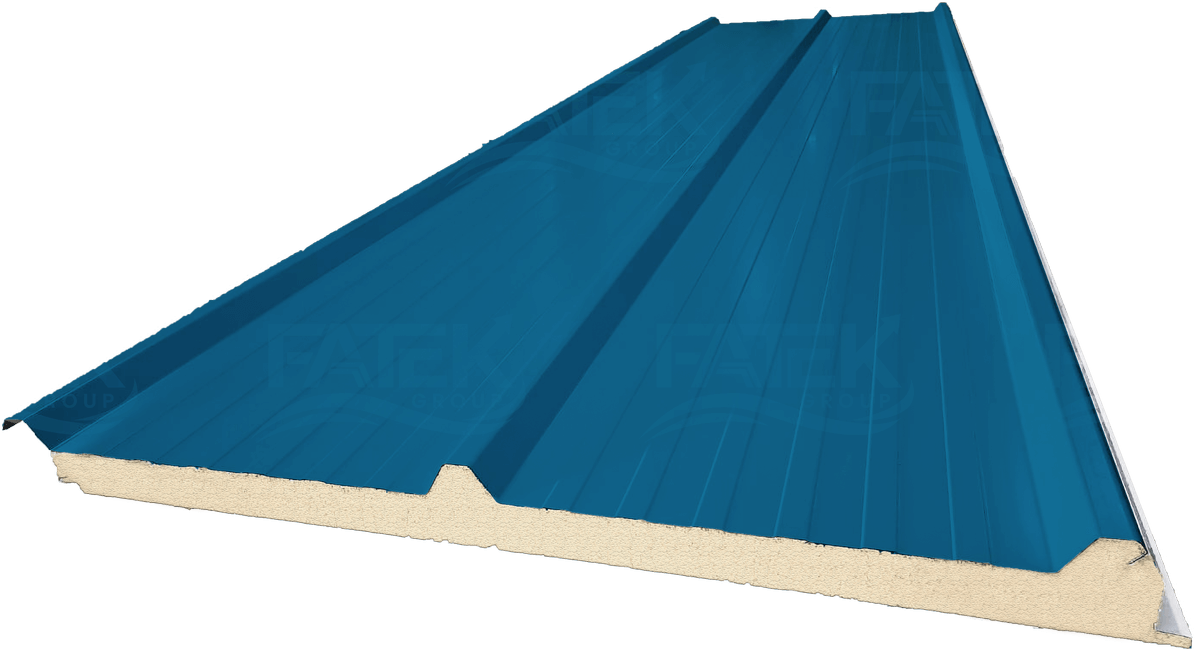

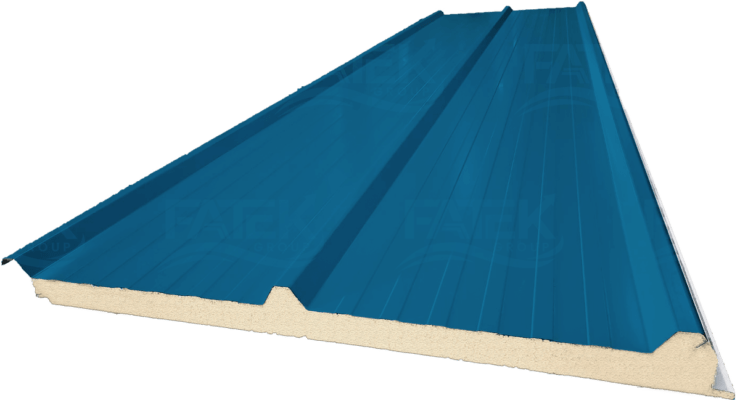

Ocean Blue color pir standard roof

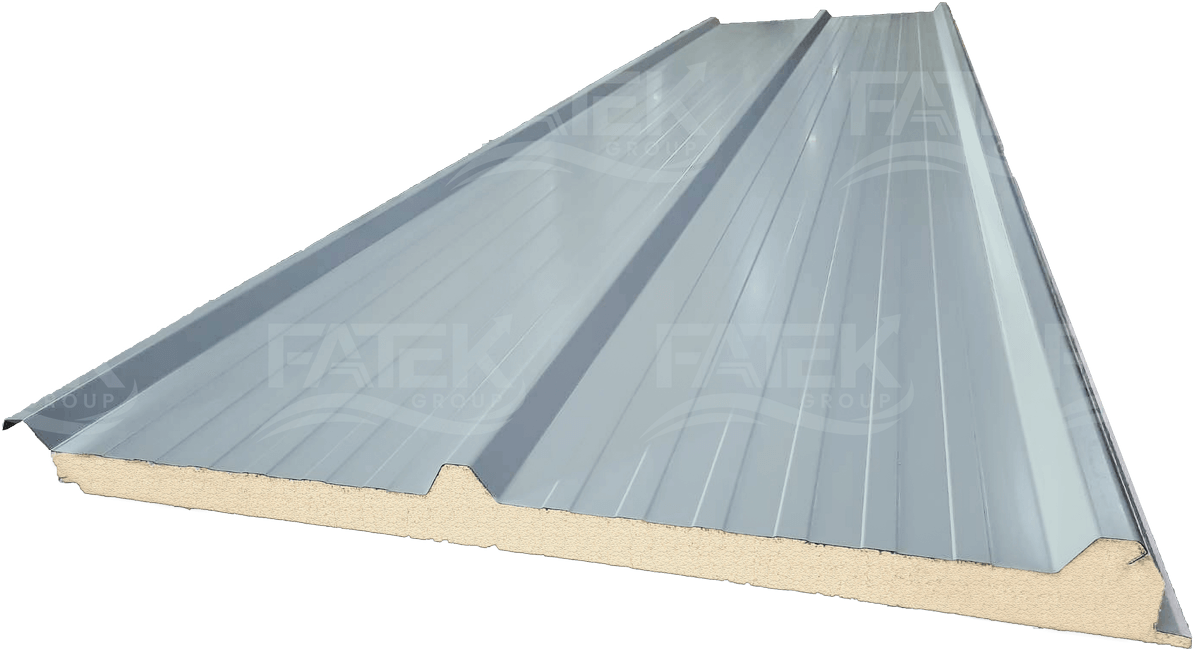

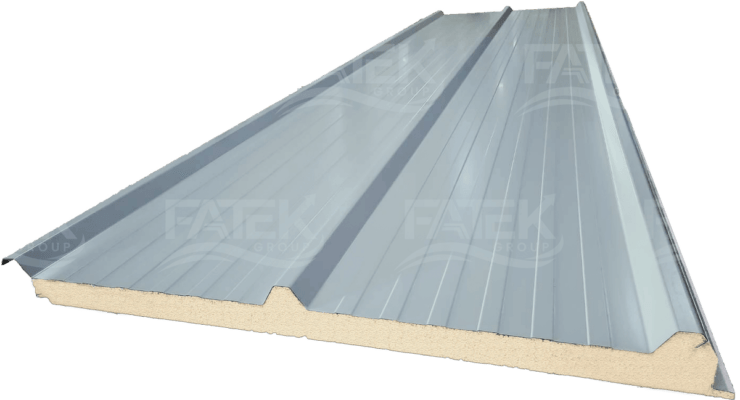

In Light Gray color pir standard roof
Why a PIR Insulated Metal Sheet Roof?
Incombustible and highly heat resistant
If it catches fire, the PIR insulator will create a layer of carbon dioxide to cover the surface, creating a charred surface to prevent the foam inside from being exposed to oxygen. This results in a product that is non-flammable and is up to 400 degrees Celsius fire resistant without breaking up.
Less smoke, prevents the product from catching fire
Our PIR insulator has an appropriate index rate of 350-370, making the insulators well compatible. It is the most effective in fire resistant and creates less smoke when it catches fire.
Strong and durable
The product is made of a high-quality iron, extremely pressure resistant – able to resist a horizontal pressure of 216-295 kPa and a vertical pressure of 123-135 kPa.
No loud noise when it rains
Under the roof is insulated with PIR insulator which is able to considerably reduce the reflecting noise or unpleasant sounds.
Eco-friendly
PIR insulation contains organic compounds found in nature. and is used instead of CFCs (that cause global warming and destroy the Earth’s atmosphere)

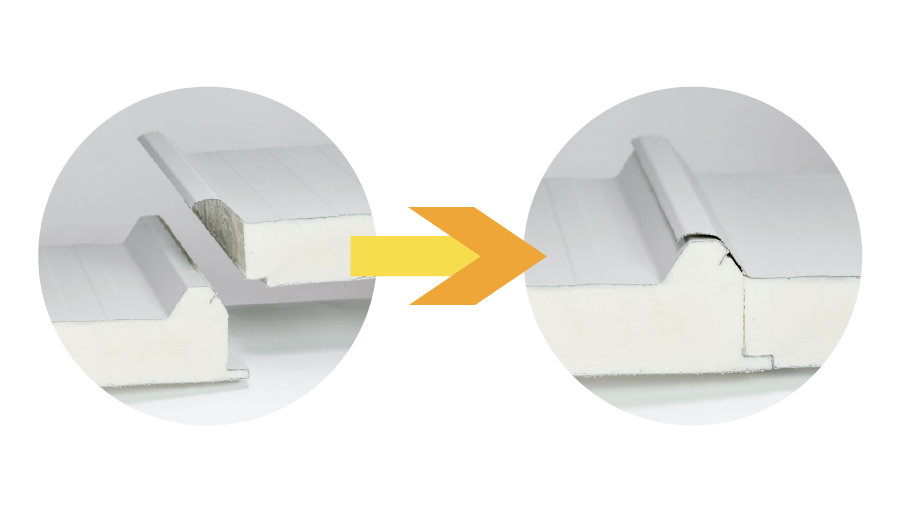

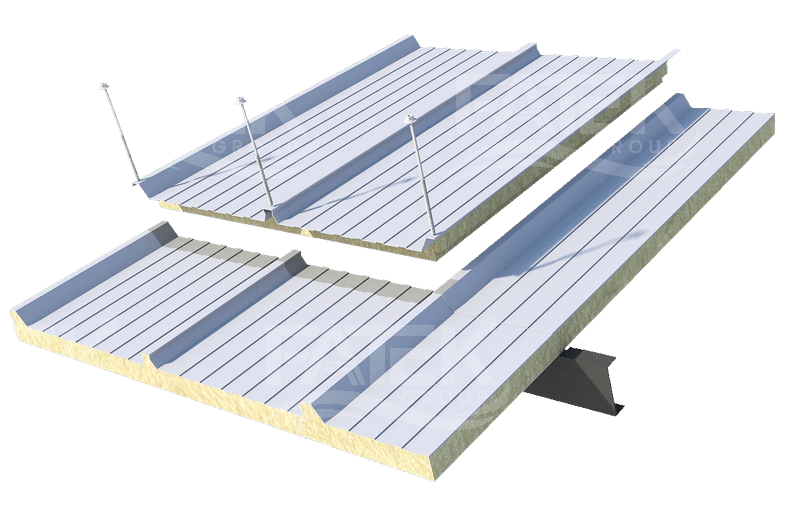

Leak-free with Overlap
We have a state-of-the-art manufacturing technology that can do overlap, which allows the assembly of overlap between the roofing joints without gaps and prevent leakage of rain water as well.
Connect between smoothly
The connection between the sandwich panel roof is simple and smooth, locked, stable, not moving and water is difficult to penetrate between the joints
Non-flammable, ECO-Friendly roof
PIR insulated roof by FATEK Group
PIR insulated metal sheet roof (Standard Roof)
Width : 1,000 mm (fixed size)
Length : 0.50 – 15.00 m (depends on the requirement)
Thickness (does not include the outer ridges) : 25, 50, 75 mm
Insulator type : PIR Foam
Density : 28 kg/ m3
Thermal conductivity (K) : 0.021 – 0.023
Color of the outer roof : Off White, In Light Grey, Ocean Blue
Safe ‘Walk-on’ Span the longest purlin distance : 1.5 m
| Iron type | Coating Class | Thickness (mm)) |
|---|---|---|
| Outer surface | AZ150 | 0.35 |
| Inner surface | ZM120 | 0.40 |
Order
contact for BUY NOW
Color
Insulated roof
PIR metal sheet sandwich panel insulated roof
The metal sheet roofs are consisted of PIR foam insulator that is installed under the roof. It helps prevent the heat from entering from under the roof. This kind of insulator must be installed during the construction phase of the house. It is not very popular yet. However, installing the insulator under the roof is the best and the most effective way in preventing the heat.
The material used in the product is PIR (Polyisocyanurate Foam). It is used as an insulator of the roof. It can prevent both heat and coldness. It is lightweight, easy to move, making installation easy and fast, can be used as a ceiling of the attic without requiring more of other insulators, reducing the steps in the construction. It is mostly installed during the construction process.
We also use metal sheet / Aluzinc as the outer roof structure. It is strong and durable. The metal received a global standard.
Qualities of PIR insulation roofs
- Up to 400 degrees Celsius heat resistant
- Fire resistant, non-flammable, and difficult to catch fire
- 216-295 kPa horizonal pressure resistant
- 123-135 kPa vertical pressure resistant
- A good insulator (poor in heat-conduction)
- Difficult for vapor or substances to be absorbed through
- An insulator, blocks noise, and absorbs sounds
- Effective in humidity absorption, poor liquid absorption
- Helps maintain a good room temperature
- If the product catches fire, the PIR insulator will create only a little amount of smoke, helps reduce the risk of inhaling dangerous substances.
- Lightweight, strong, easily movable, and suitable for all industries
Shipping
Delivery service available in Thailand.
We have a delivery service to customers nationwide with a delivery charge based on distance, the salesperson will notify you of the cost.
Can come to pick up at the factory
You can come to pick up the product yourself at our factory. To save cost Or if it's not convenient, you can use the service to deliver products to you all over the country.
Check the quality before delivery.
All of our quality check (QC) before shipping to your hands. To ensure that You will receive good quality products.PAYMENT
You can pay Via credit or debit card issued by banks in Thailand. We have Electronic Data Capture (EDC) for service. Please notify the sales team. If you want to pay by that method, and we also have QR Payment, Online by link payment and bank transfer method.
Steel Supplied by "BLUESCOPE"
The quality raw materials, we selected such as the high quality color-coated iron from NS Bluescope
The quality raw materials are also well selected such as the high quality color-coated iron from NS Bluescope having quality at the international level the color passed test in Food Grade level.
